10pairs x MC4 connector

Rated voltage: TUV 100V DC / UL 600V DC;
Rated Current: 20A-30A;
Degree of protection: IP2 * / IP67;
Flammability rating: UL94-V0;
Temperature Range: -40Celsius~+85 Celsius
Cable specification: 2.5mm2 - 6.0mm2 / 14AWG - 10AWG;
Test voltage: 6000V (50Hz, 1min)
Quick & simple assembly processing,adopt tight-hoop connection of cable
Fastness of male and female points with stable self-locking system which is easy to lock and open.

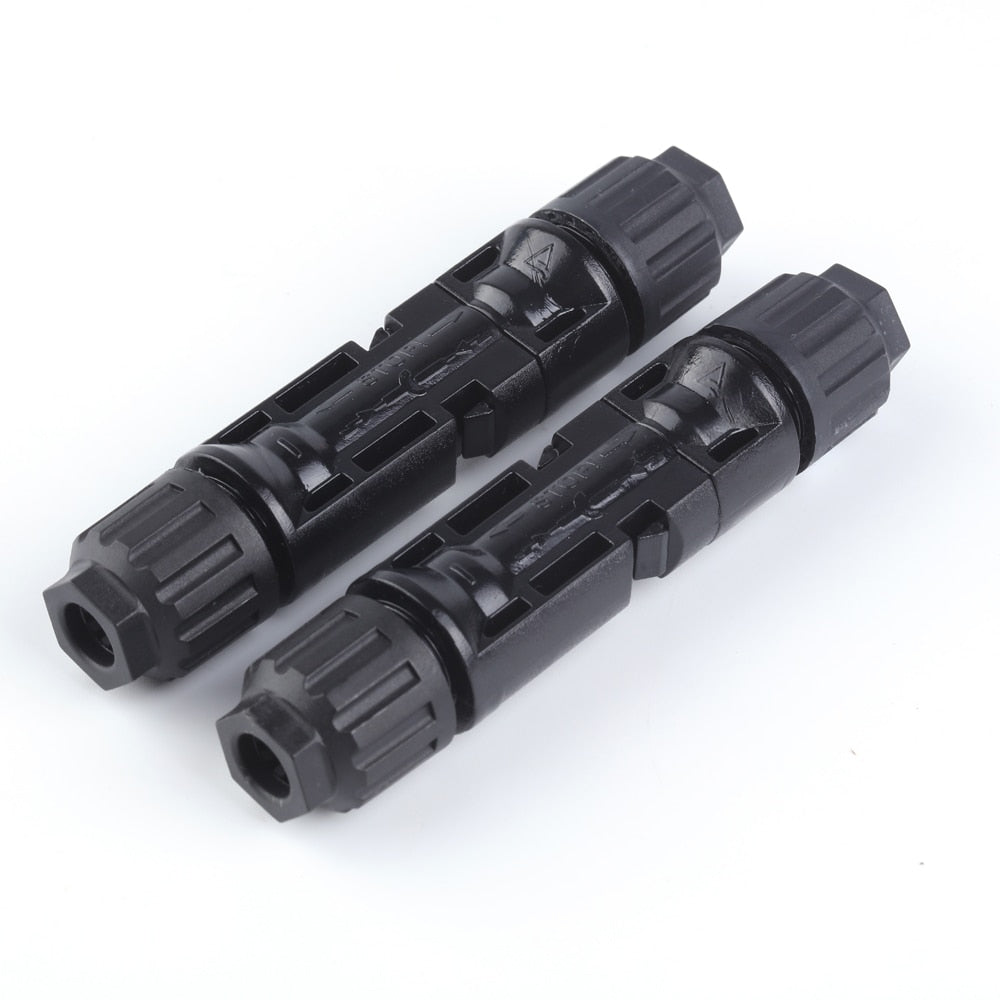

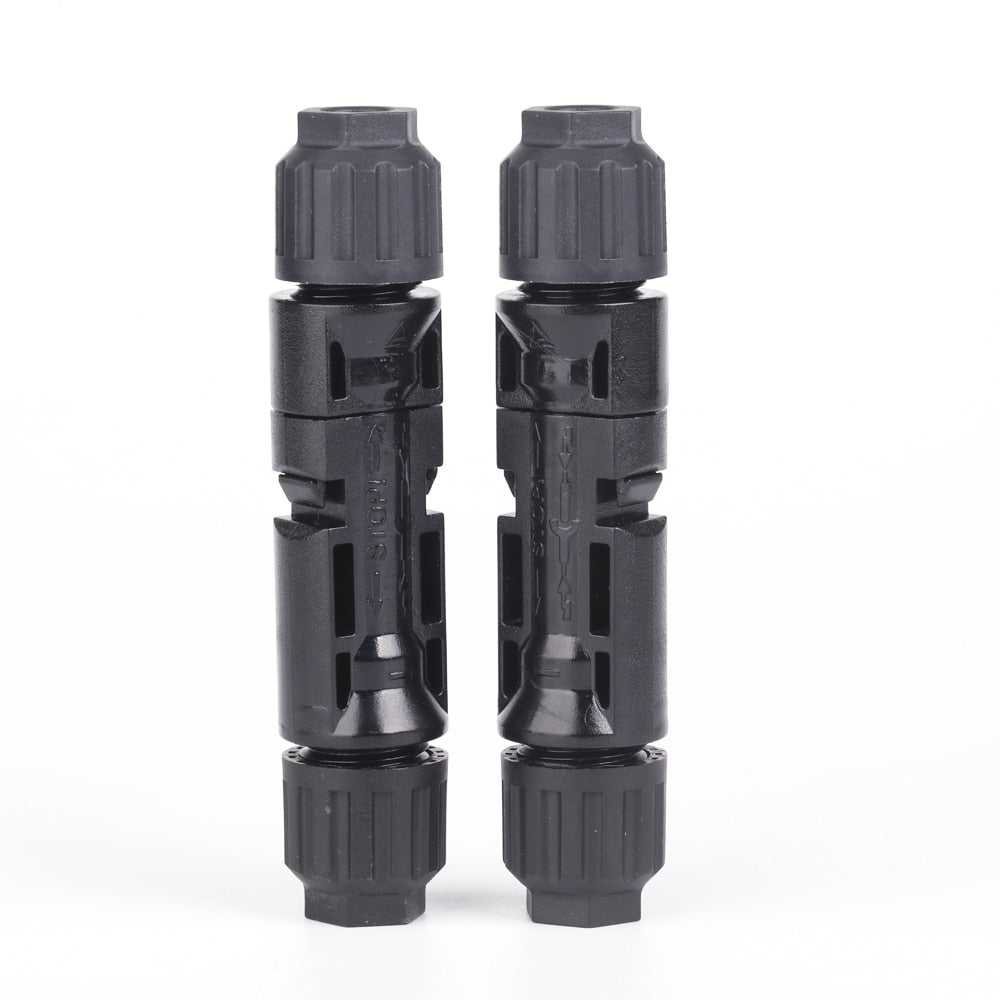

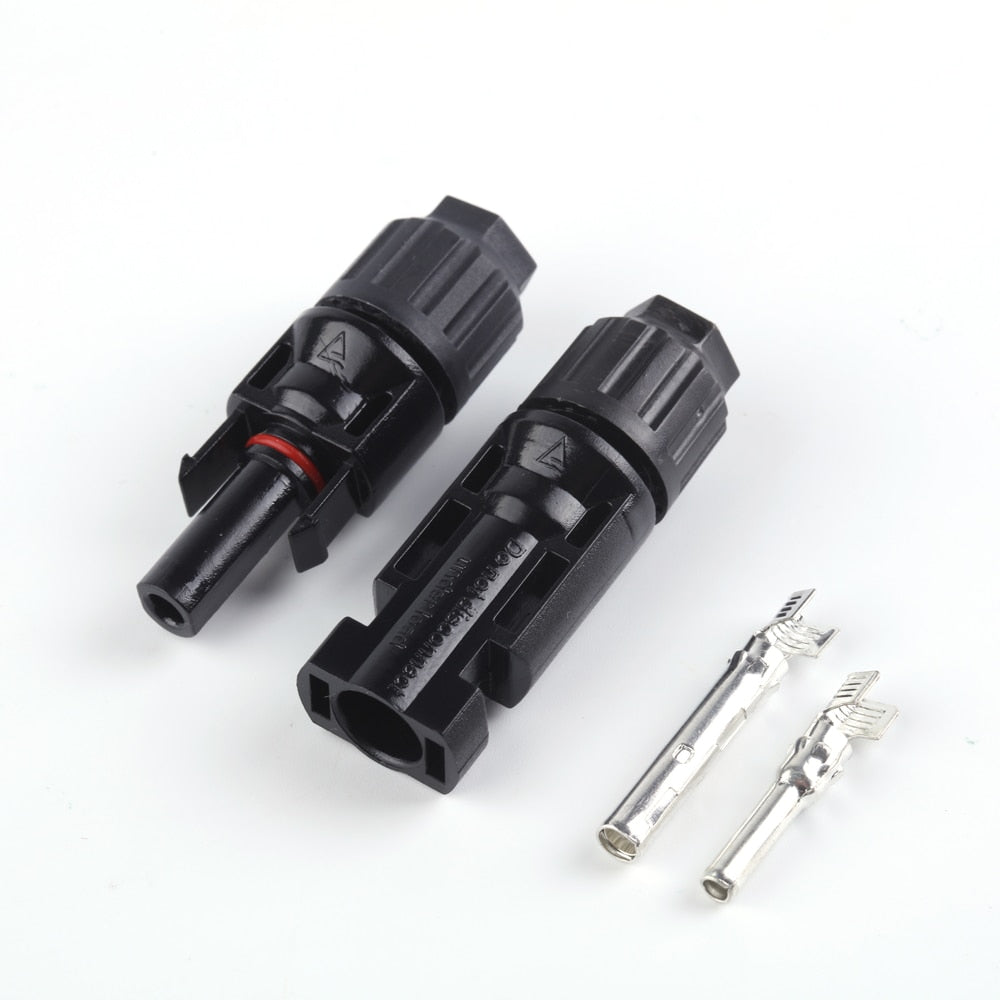

Fetures: These are MC4 Solar Panel Connector
This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field.
Specifications: Product Name: Solar PV ConnectorModel: MC4
colour: black
Material: PV
size: 94 x 18.5mm
Package Contents:
20 x pair Solar PV Connector
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
