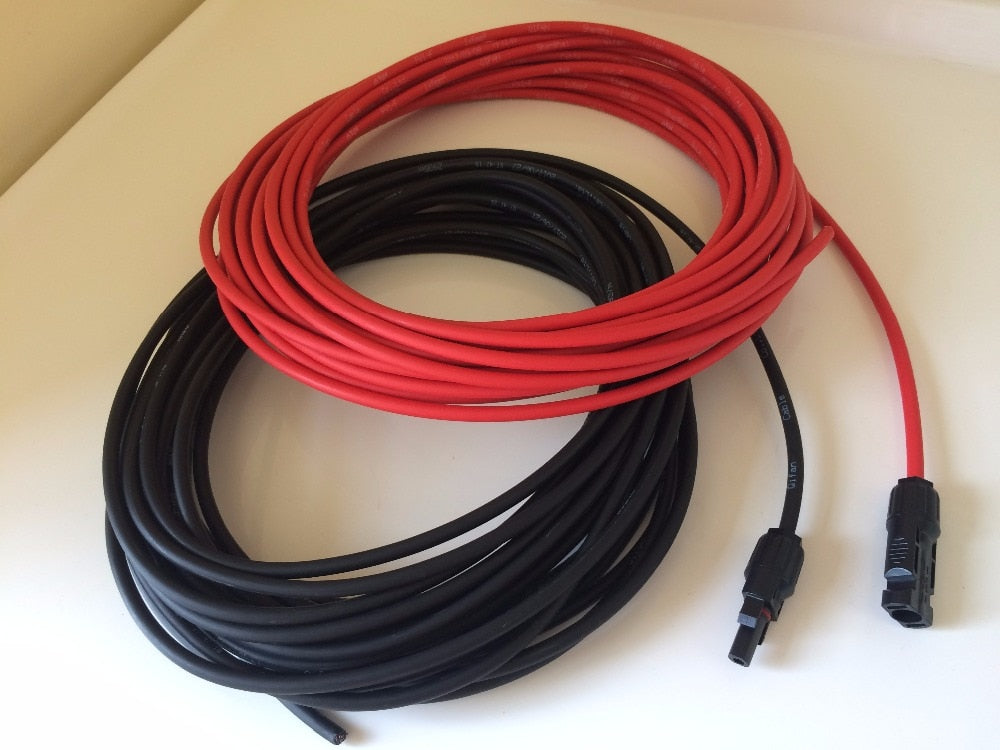

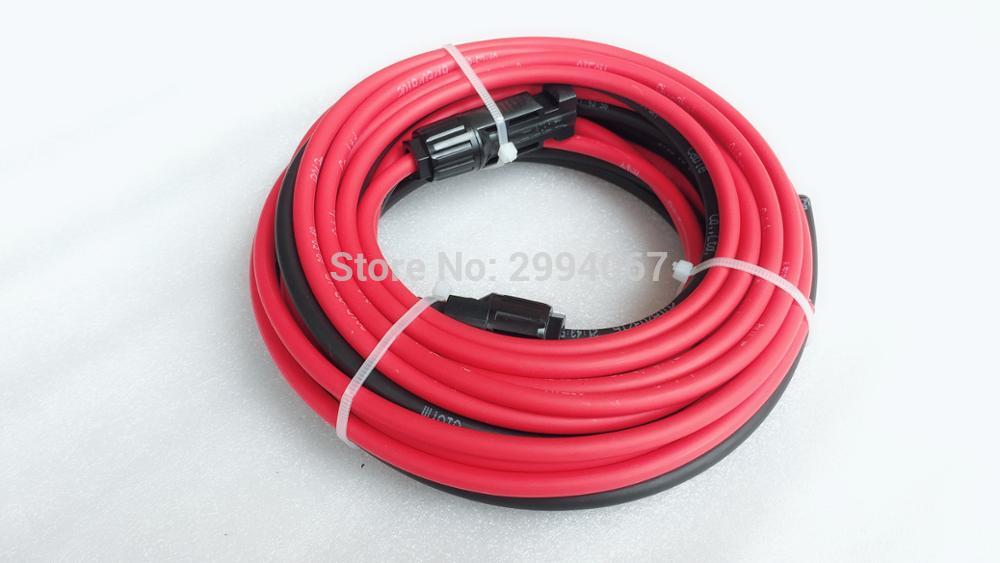

1 Pair MC4 Solar PV Cable Connector

Black and Red Copper Wire with MC4 Connector Solar Extension Cable 6/4/2.5 mm2 10/12/14 AWG
1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) /  5 Meters (16.4ft) / 10 Meters (32.8ft)

Cable size range : 6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)

Specification

·         Rate voltage: 1000V  DC

·         Rate current :20A ( 4MM2 )  30A ( 6MM2 )

·         Safety Class: Ⅱ

·         Protection Degree : IP67

·         Locking system: Snap in

·         Protection degree: IP67

·         Insulation material: PPO + PA

·         Contact Material : Copper cn , Plate with nickel sn

·         Contact resistance: ≤0.5mΩ

·         Insulation resistance: >500mΩ

·         Cable outer diameter : Φ5mm ～Φ 7mm

·         Cable size range : 6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)

·         Operating temperature: -40°C~ +105°C

·         Flame Class : UL94-VO

·         Insertion force : <=50N , Pullout force>=50N

Description:

·         Compatible Mc4, Male Female 1 to 3 Wire Connector

·         Lower contact resistance

·         Strong pulling force capability

·         Created seal, design of dustproof

·         It can be used in a harsh environment

·         With convenient installation, strong commonality

·         Double seal rings to better waterproof effect

·         Compatible with PV cables with different insulation diameters

·         With excellent ageing resistance and UV endurance

·         Load capability with big current and high voltage

·         Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

·         Resistance of extra high & low temperature and fireproof

·         With the capacity of anti-ageing and resistance to ultraviolet radiation on the out cover
